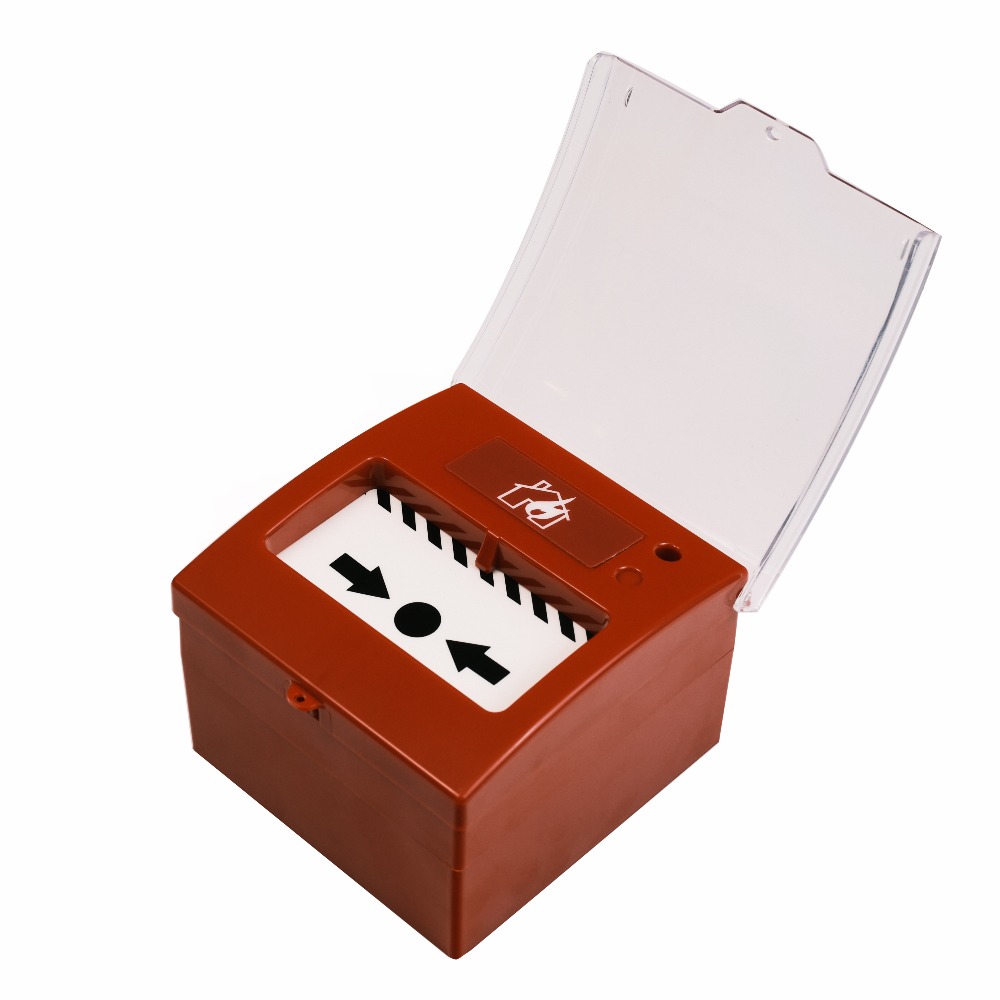

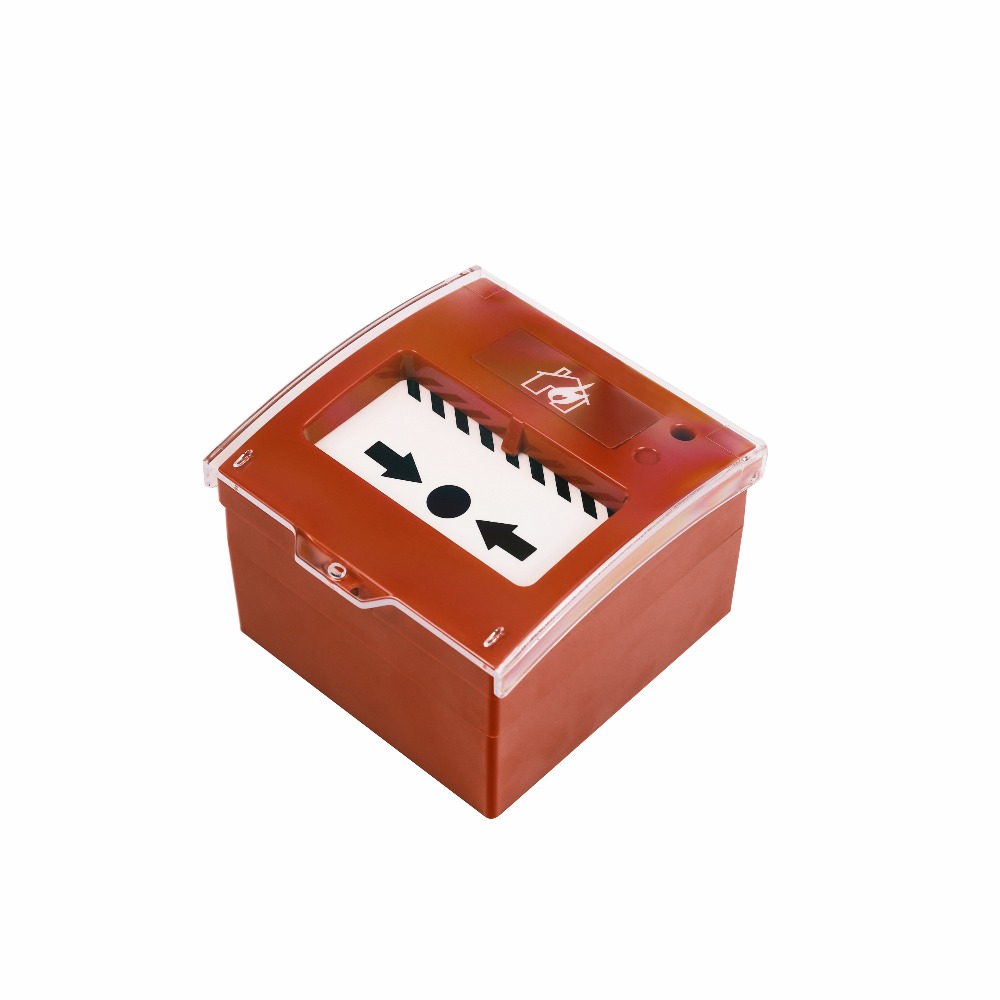

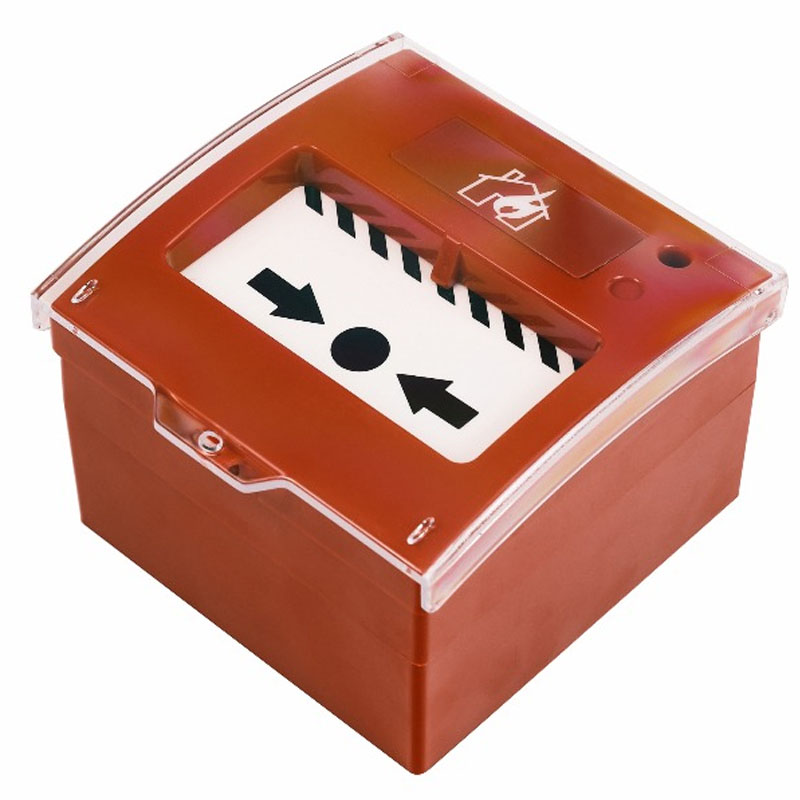

The address can be programmed by means of the programmer or with the addressing function of Teledata smoke detection panels. It is provided with tools for base numbering and locking pin against unwanted removal.
Technical Features
• Provided with integrated isolator circuit
• Red color led
• Flush-mounted installation tool included
• Power supply: 18-35V
• Average current consumption: 120 μA
• LED current consumption: 6mA (24V- line)
• Operating temperature: –20°C + 65°C
• Max. humidity: 95%
• Dimension: 87x87x54 mm
• Max. Cable cross section 2.5 mm²
