Functional Features

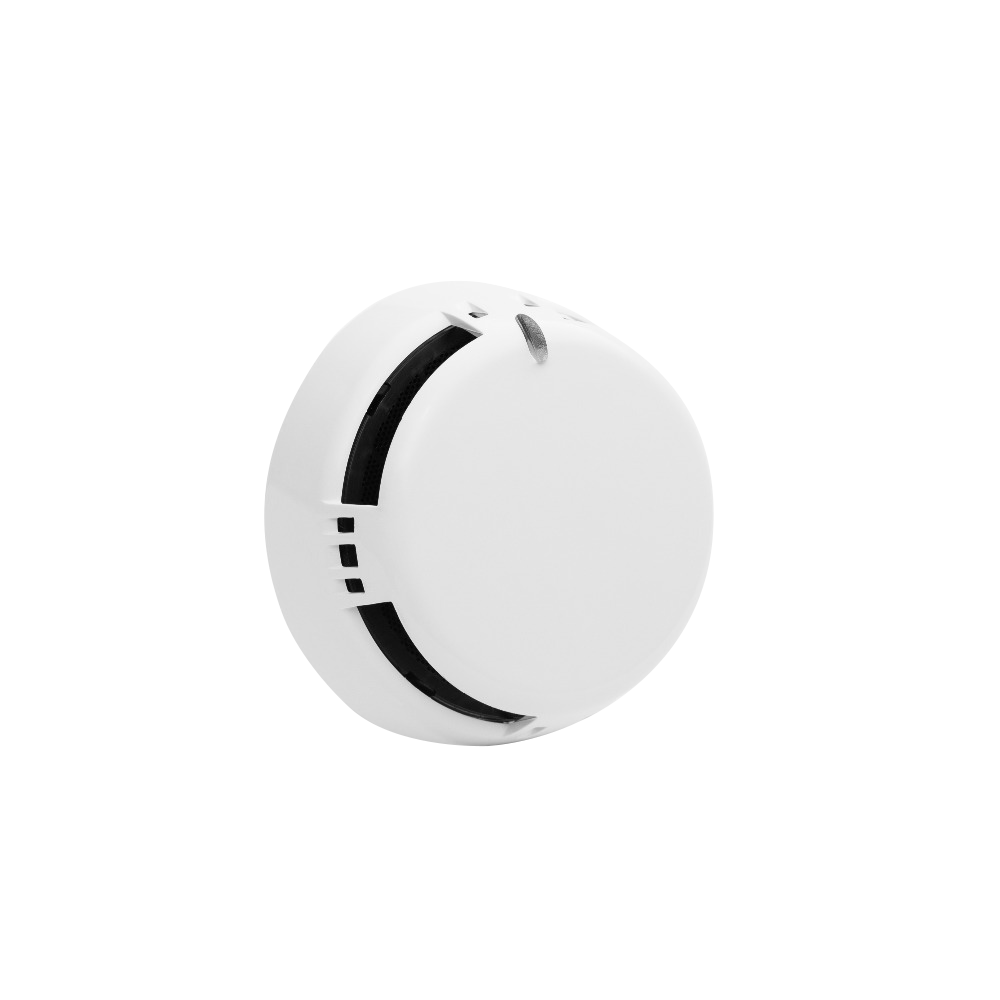

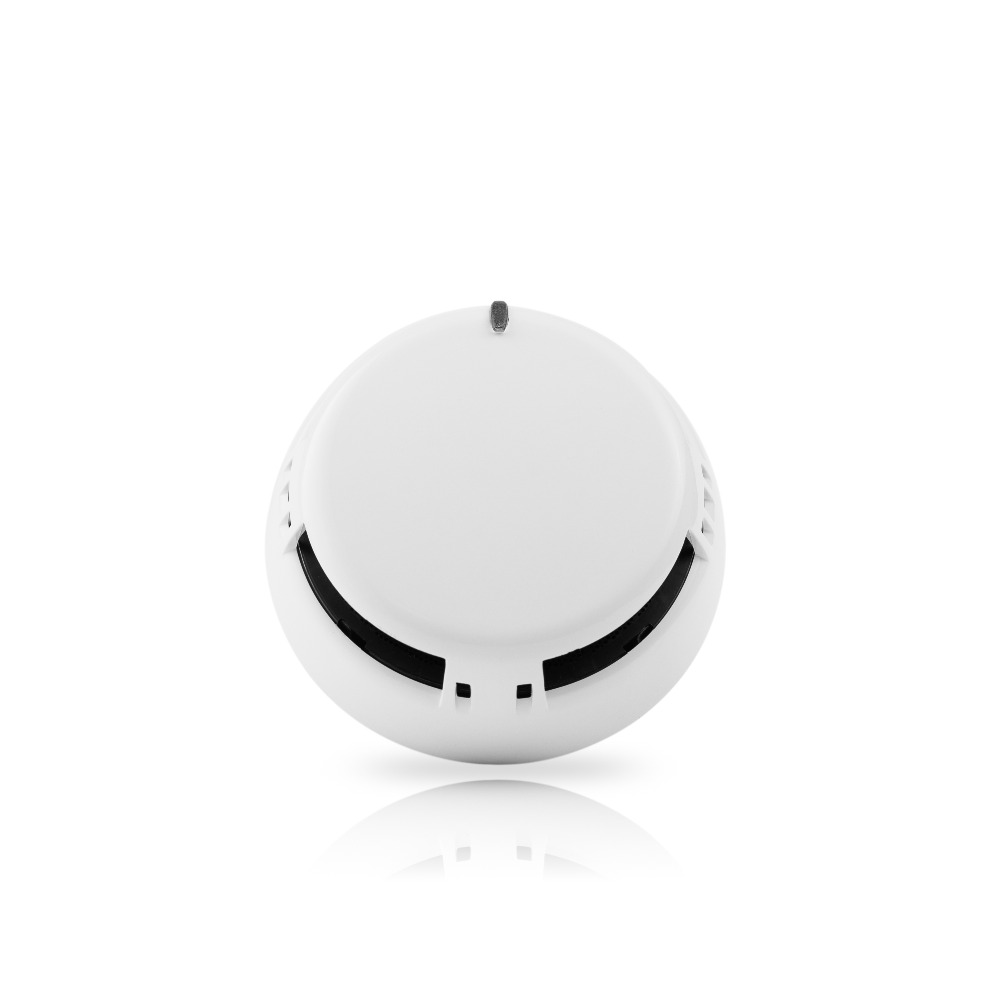

The OneDetector2 ensures the analysis of the air temperature of the protected area and immunity to false alarms. The 360° visible LED with three different colours signals a condition of alarm (red), fault (yellow) and localization (green). Each detector is provided with an integrated isolator circuit, that automatically takes action. The address can be programmed by the
touch-screen digital programmer or with the addressing function of Teledata panels. It is provided with tools for base numbering and locking pin against unwanted removal to provide the highest level of safety and system reliability.
Technical Features
• Low profile thermal and thermovelocimetric smoke detector to be combined with ONEBASE
• Thermovelocimetric function at 58°C
• Thermal function at 78°C
• Built with multicolored plastic material, modern design.
• It can be programmed to operate at 58°C or 78°C
• Built with ABS plastic material with stabilized UV,
• Modern and compact design, low aesthetical impact
• Remote LED control option
• Power supply: 18-35V
• Average current consumption: 90 μA
• IP40 degree of protection
• Maximum current consumption remote LED: 15mA
• Operating temperature: –30°C + 70°C
• Max humidity: 95% non-condense
• Height: 48mm with base
• Diameter: 92mm • Weight with base: 120g
