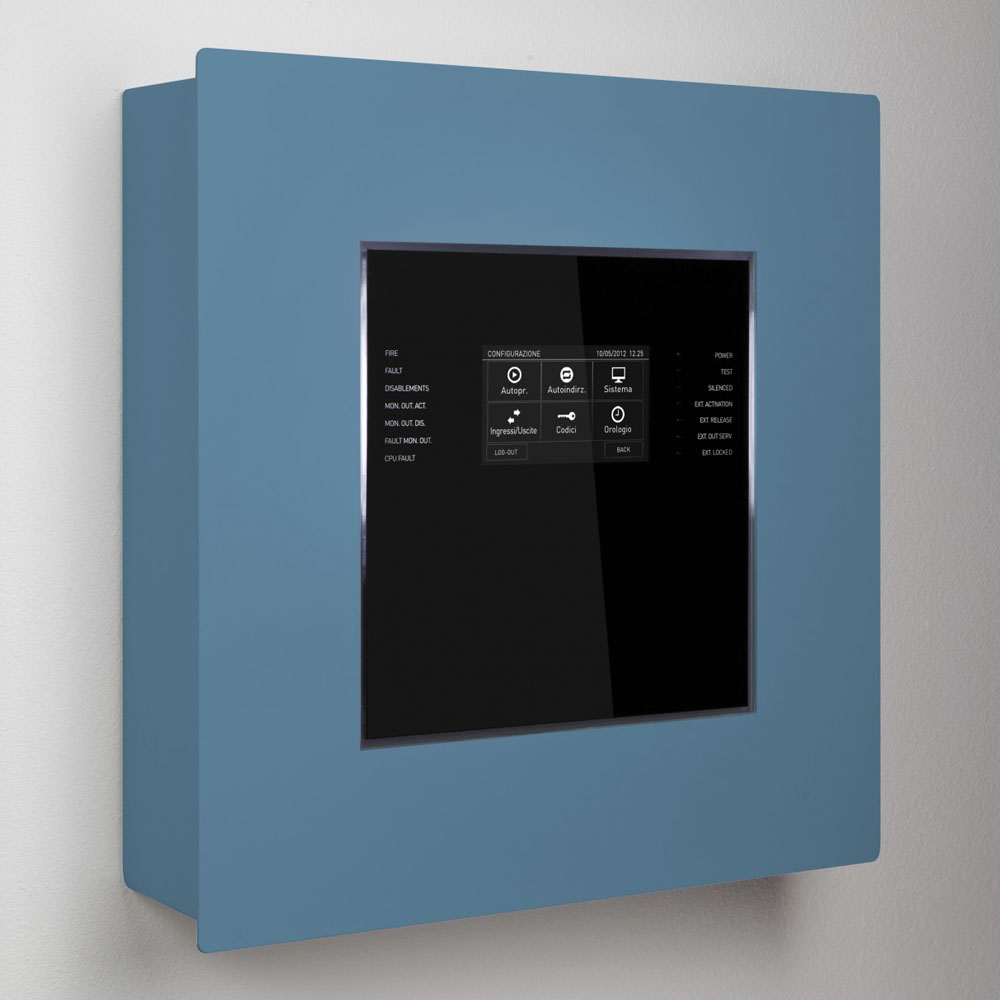

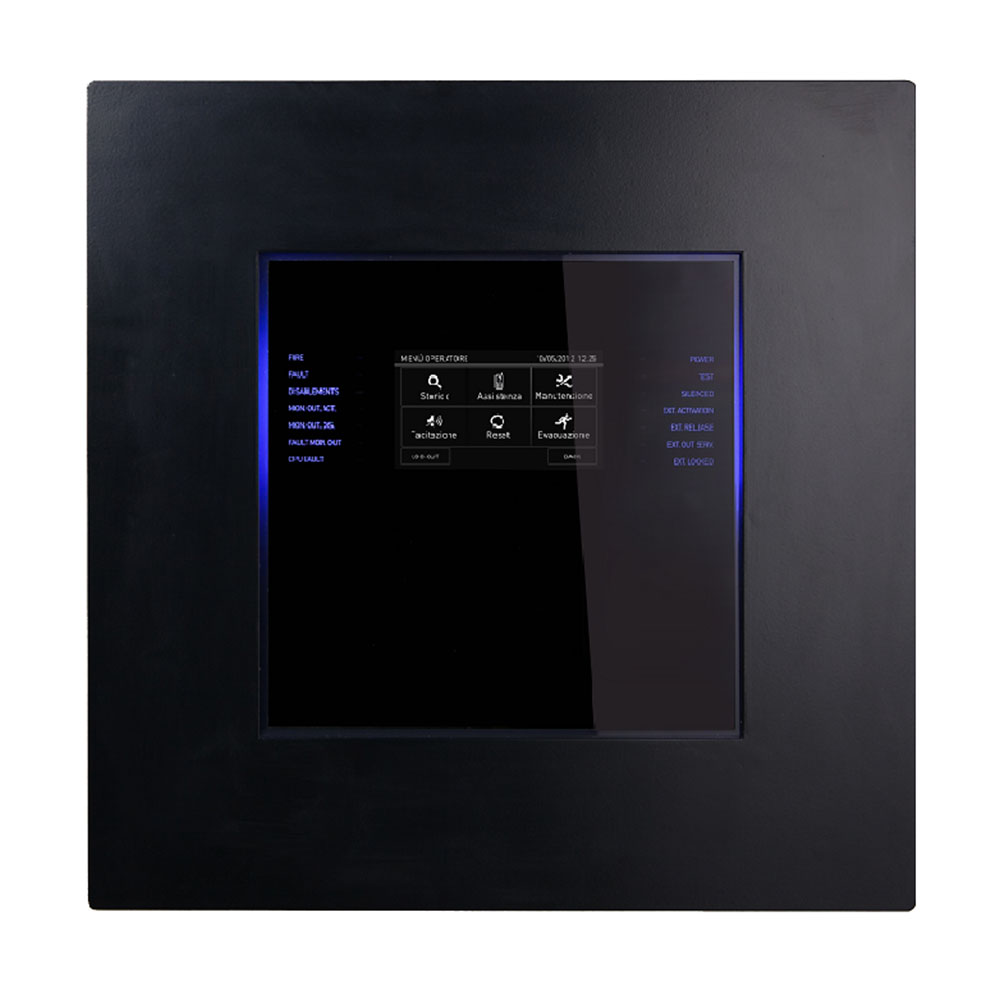

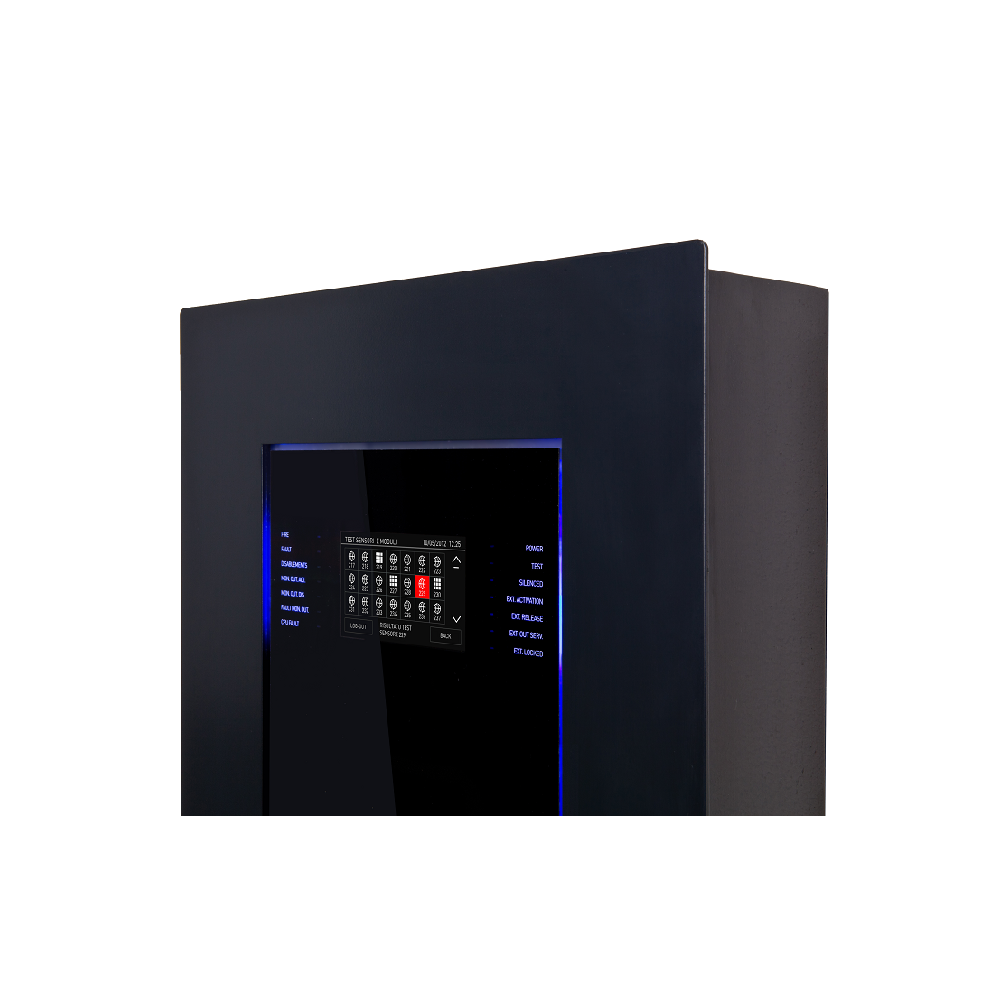

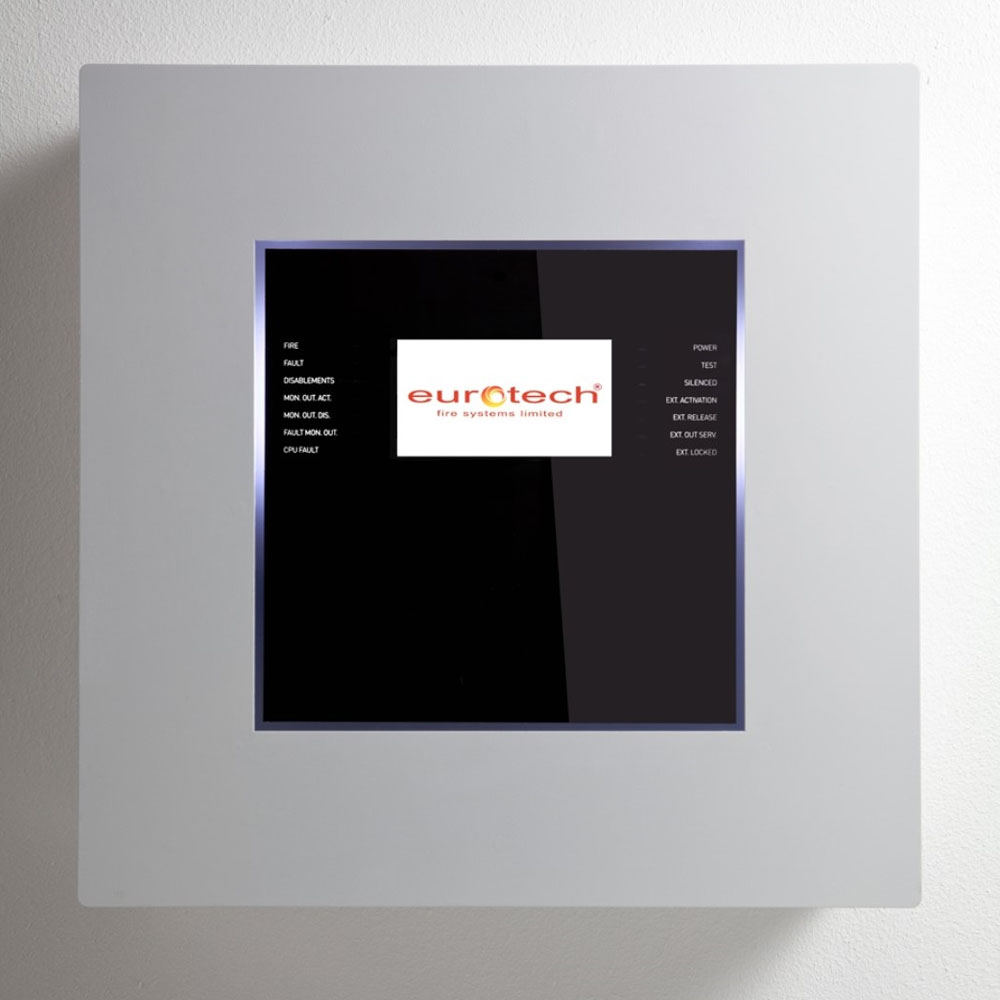

TeledataOne Addressable Fire Alarm Control Panel, with Touchscreen

Description

Teledata One is a microprocessor fire control panel that allows fire detection by means of cabled or wireless devices, and it can be programmed and consulted from a touchscreen display.

Main Features

Multiprotocol control panel, with its minimal set-up it is able to manage open or closed loops of 240 compatible devices. Basic configuration can be expanded adding two loops each time to control up to 2160 devices, both optical and thermical, from a single control panel. In complex applications, it can be installed in a ring network (up tp 32 contol panels). In this distributed architecture, areas and zones can be monitored by detectors and they can be combined by means of logical expressions in order to trigger events for the panel to which they belong or for other panels of the ring network. With the installation of dedicated cards, it is also possible to connect the control panel to external peripheral, such as keyboards and LED panels.

Hardware Features

• Addressable fire alarm panel with 32-bit microprocessor
• LCD touchscreen display (480×272 TFT 4.3”)
• Back light on/off and three settable colors
• 1 addressable loop, expandable up to 9 loops (with 4 One2) configurable as open or closed
• Digital protocol
• Frontal LEDs with three settable color: white, blue and green each loop supports 240 addressable devices
• Short-cut circuit protection
• 14 front LED for events
• Silenceable and excludable signaling buzzer
• 1 monitored output for siren or dialer (24Vdc 1A)
• General Output dry contact 1A 30Vdc 120 Vac
• 1 general open collector output
• 1 RS 485 line for perifericals (maximum current value)
• 1 RS 232 and 1 micro USB for programming and remote management
• Ethernet card 10 Mbit/s (Optional PTLAN)
• 56 LED zone (option card ONE 56)
• Ring Network Card between central (optional ONE RING tab)
• Maximum 14 remote control panels can be connected to the
• RS485 BUS max 800m distance (ONE KBD)
• With four additional One2 needed supplementary power supply (ONEPW)
• Two 12 V Battery: capacity 17Ah each
• Automatic test of efficiency batteries and battery disconnection
• in case of deep discharge
• Auxiliary power output 24 Vdc 500mA with shortcut protection
• Dimensions: 410 x 410 x 120 mm
• Weight: 6,1Kg (without batteries)
• Power supply: 230Vac
• Current absorption: 300mA
• Maximum current external loads: 500mA
• Operating Temperature: 0C°/ +50C°
• Maximum current on loop: 500mA
