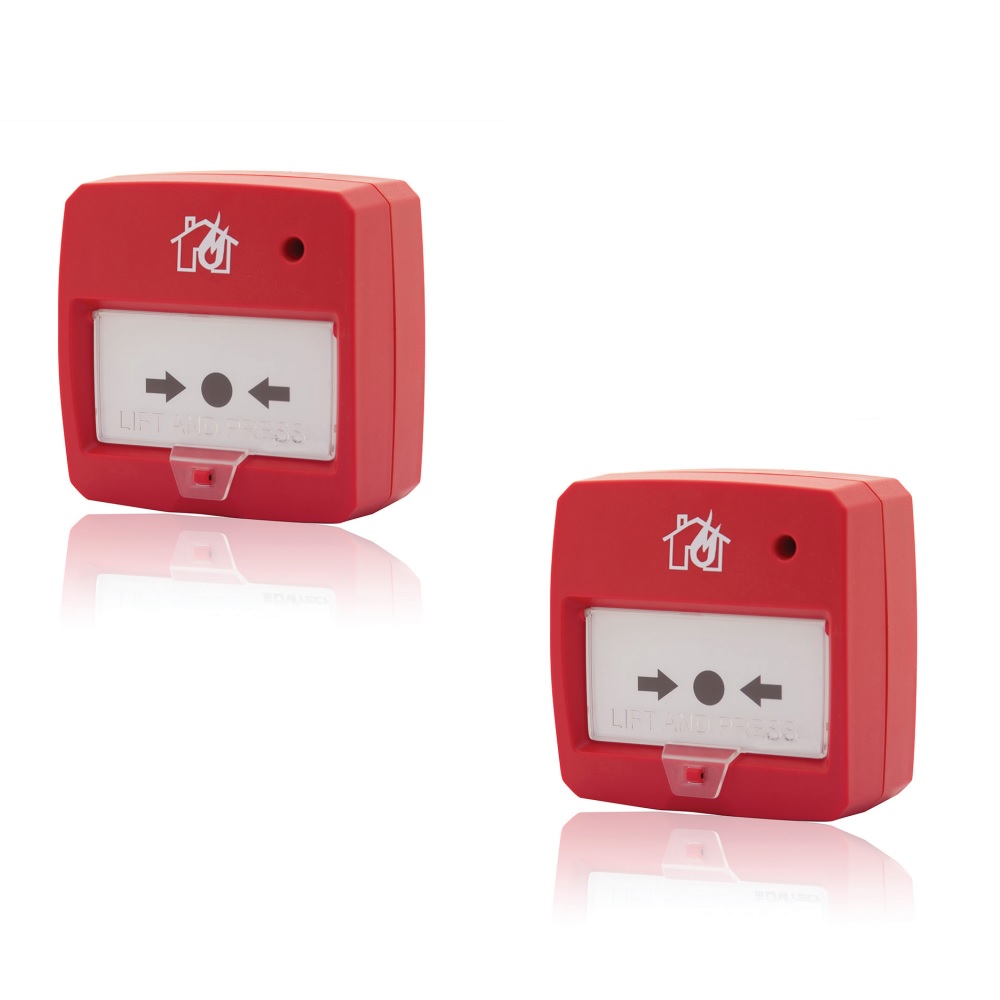

FDCP109 CONVENTIONAL CALLPOINT

Conventional fire button

Functional Features
FDCP109 is designed for internal use in fire protection systems and meets the requirements of the European standard EN54-11.

Technical Features

• Power Supply (9-30 V DC)
• Resistance 500 Ω
• Current at 24v 48mA
• Red Led indicator
• Transparent protective cover
• Connection cables 0,4 mm2
• Operating temperature range
-10°C +50°C
• Humidity 95%RH
• Degree of protection IP40
• Size (90 x 90 x 44) mm
• Weight 0,120 kg
• ABS Plastic Material
